Re: 3D Printing Doctor Who - Print and paint your own 5.5" scale customs

Post by 3DPrintingDoctorWho »

I've finished all the accessories and articulation on The Sensorite figure.
This figure will come with two different sashes (though they probably won't be swappable after assembly unless you print them out of flexible resin or TPU), plain and banded forearms, the "Telepathic Transmitter" (which may be too small to print, it's only 1mm tall) and two versions of the weapon, both with and without the upper arched part. The version without the arch has some extremely tiny holes so it's possible you may be able to use wire, monofilament, or similar to complete the print. For the crosshair pieces you will probably have to use actual hair or paintbrush bristles if you want them to be the correct scale.

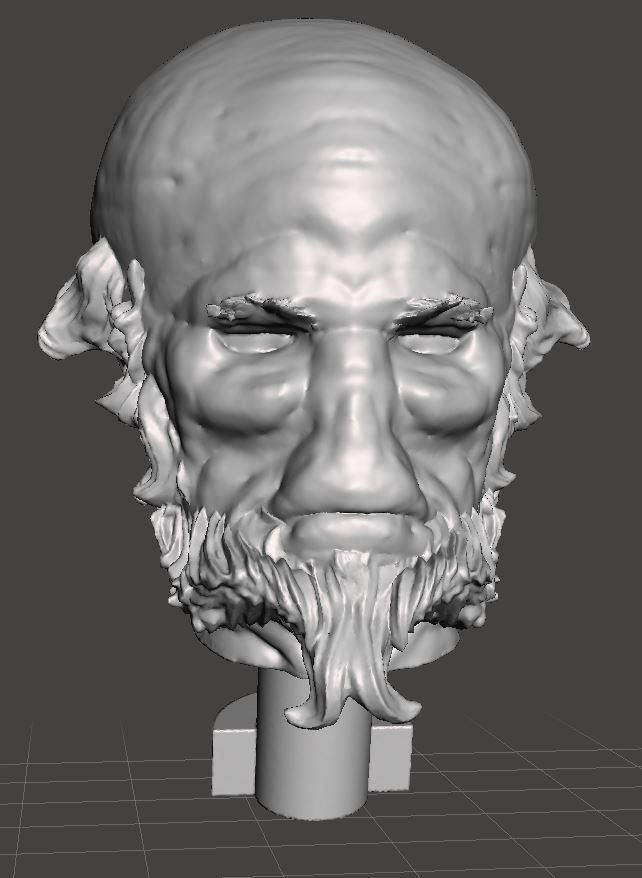

Additionally, I've also finished a second "Leader" head. I've made this one a little droopier and wrinklier than the more generic "Worker" Sensorite. I'll also be including a clean shaven head with the rest of the files just in case somebody wants to try adding their own facial hair by hand to make even more variants.


I've exported all the pieces out of TinkerCAD, and am now in the process of cleaning up and restoring all the surface detail that gets cut out when I import the model for articulation.

While I can't get away from this double-work step entirely, I have discovered that I can bypass it for faces by saving the original high detail face as a separate file, importing a copy into TinkerCAD (which reduces the polygon count to an ugly low quality amount) then adding my articulation and exporting the low poly version as usual, but then plane cutting all but the lowest layers of the neck directly above the plug part, and merging this with the high detail head I saved earlier in Meshmixer. There are a few other steps involved to up the polygon count of the neck joint, remove nonmanifold edges, smooth and repair the edges of the join, etc. but that's way easier than having to resculpt the entire face. Twice.

Unfortunately, I can only do this for the head, arms, and feet because they only have articulation on one end. The torso, because it needs to split open like a clamshell and be mostly hollow inside, can't be Frankensteined together in this way, at least not fully.
Still, it's another important shortcut to add to my bag of tricks that will make high detain figures easier to work on moving forward. (I really wish I'd know about this when I was going back and forth and back and forth with the Voord)

With any luck I'll have the Beta version of the figure finished and uploaded sometime tomorrow, and can begin test printing on Tuesday or Wednesday. As with the Voord, Raston, and Kronos, I expect it'll take a few test prints to get the articulation zeroed in, but all the fine detail work is now complete. It's just fiddling around and fine tuning from this point forward.

User avatar
skifflebits
Posts: 2438
Joined: Tue Jun 11, 2019 2:41 pm

Re: 3D Printing Doctor Who - Print and paint your own 5.5" scale customs

Post by skifflebits »

I'm really looking forward to seeing the printed Sensorites.

User avatar
3DPrintingDoctorWho
Posts: 139
Joined: Wed Jun 12, 2019 6:08 am
Location: Sacramento, CA
Contact:

Re: 3D Printing Doctor Who - Print and paint your own 5.5" scale customs

Post by 3DPrintingDoctorWho »


Well, as you can see overall print quality (at least in resin) turned out absolutely gorgeous, even including the weapon, which I wasn't sure about. Shoulder, elbow, and hip articulation all worked flawlessly on the first try. Yay me. The knees aren't bad, but they still bends forward in the wrong direction, but I'm pretty sure I can correct that with a minor tweak on the next revision. The only two significant problem points were the swappable heads and sashes.

Giving this figure hot-swappable heads was a great idea, but doesn't work because the underside of the neck plug doesn't have anything to support it and it just slides down into the neck cavity and is too tiny to really get enough purchase to properly support the head. All this means is that I've have to revert back to the original neck plug design, which I saved a copy of prior to alteration. So that problem's already fixed itself.

The sashes proved more problematic. You can get the single diagonal Second Elder's sash onto the body... as long as there's no head attached, but the First Elder's double sash won't go over the top of the body at all, even when printing out of a flexible resin.
So, since the double-sash is unusable and the single sash is only usable without a head, what I'm going to have to do is just make three alternate solid front and back chest pieces for plain, diagonal, and cross sash, and then you just pick which version you want to print. Luckily, this is pretty easily accomplished, and it means you aren't required to use a fancy flexible resin or filament if you don't want to. (Though I still advise at least a 25% mixture of flexible resin to if SLA printing to give your figure some durability and preventing it from breaking if it falls over.)

All things considered, the amount of modification to get this figure to a finished state is going to be minimal, and I'll probably have it all finished in time for a second (and final) test printing this weekend.

User avatar
skifflebits
Posts: 2438
Joined: Tue Jun 11, 2019 2:41 pm

Re: 3D Printing Doctor Who - Print and paint your own 5.5" scale customs

Post by skifflebits »

Wow. That's very impressive. Seriously, your work just keeps getting better and better with these things.

Regarding swappable heads: Has anyone tried a system with maybe a slot-and-flange arrangement whereby you could only insert or remove the head if it the flange was lined up with the slot, and designing that position so it was a position you'd never pose the figure in? Like, say, the head pointing straight backwards?

I know I'm not describing this very well... Maybe I can find an image as an example or something...

User avatar
3DPrintingDoctorWho
Posts: 139
Joined: Wed Jun 12, 2019 6:08 am
Location: Sacramento, CA
Contact:

Re: 3D Printing Doctor Who - Print and paint your own 5.5" scale customs

Post by 3DPrintingDoctorWho »

I get what you're saying. And I was sort of considering that. If the top of the neck was triangular or had a square flange at one end, it'd fit and lock in place better, but the main problem is, to fit inside the head without weakening the side walls of the neck/collar, the neck plug needs to be just a little under 3mm wide. It's already so tiny, that it may not print as anything more than a vaguely circular blob on filament printers, so I can't really contract it any smaller or expand it out further to give it a tighter lock-in fit.

If I was doing something bigger with a much larger head; like a Tereleptil, Tetrap, or Tractator, I could pull that off without a hitch, but one of the biggest problems with doing humanoid figures at this scale is that everything you're printing is just barely at the boundary of what's physically possible to print without self destructing. If CO had scaled their figures just 10% bigger there's all sorts of awesome stuff I could do, like add separate wrist, ankle, and upper thigh articulation, the figures would be *way* sturdier, and you'd be able to see a lot more of the fine detail on the face.
But it is what it is, and at least I have enough experience doing this now that I can *usually* spot when a planned articulation isn't going to have enough room to function, and just do my best to work around it.

User avatar
3DPrintingDoctorWho
Posts: 139
Joined: Wed Jun 12, 2019 6:08 am
Location: Sacramento, CA
Contact:

Re: 3D Printing Doctor Who - Print and paint your own 5.5" scale customs

Post by 3DPrintingDoctorWho »


I managed to wear a respirator for about an hour this evening while I was doing some dremel work to clean up a few pieces, mainly my original test print of the Battle Damage Emperor Dalek which needed to be ground down significantly so the revised panels would sort of fit in the holes. I also brought out every single box and tray of parts that's been taking up space on my work table for the last 8 months, so that tomorrow I can finally start priming and painting while the weather's nice and it's not too hot or cold to work out in the garage. Spring around here typically lasts for about three weeks before it jumps straight from 70°F to 90°F, so I've got to get as much done as I can while Mother Nature is still in a good mood.

All together, I've got about 20 pieces in total waiting to be painted and assembled, and several of these are either going to go into the shelf clearing sale, or free up earlier prototype versions of the figure that will do the same.

Now that my lungs are almost back to normal, I expect it'll take me about a month to finish this lot, so the aforementioned shelf clearing sale should is now shaping up to start sometime around the last week of March/first week of April. (I'll be sure to let everybody know ahead of time when it's about to start, as well as post a full inventory of everything that will be included)
